CMA-series Compact Mixers with DSP, USB Play/Record/PC and Bluetooth

CMA-series Compact Mixers with DSP, USB Play/Record/PC and Bluetooth

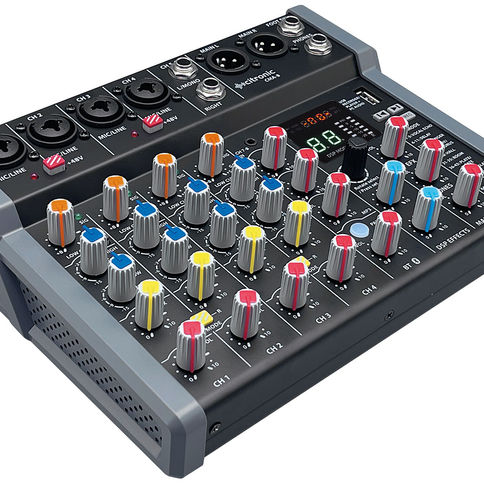

Compact format audio mixer with 2, 4 or 6 mono input channels, a stereo line input and a further minijack stereo input. Each mono mic/line channel has a combo XLR/jack input with +48V phantom power switchable in pairs for the XLR inputs. Each mic/line channel has a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones. Each mono channel also has High/Low EQ controls and an FX level control. Pairs of mono channels can be linked to act as a stereo left + right pair as required. The onboard foot-switchable DSP effects engine has 99 presets for delay, reverb and modulation effects, each of which can be adjusted using two parameter controls. An onboard Bluetooth receiver has an illuminated pairing button and independent volume control. The USB type-A port on the top panel is for playback of audio files or can be used to record the main outputs to a USB storage device or as an external audio device when connected to a laptop. Output is delivered to a pair of balanced XLR connectors to provide low noise operation for high quality studio or live performances.
DSP effect section with 99 adjustable presets
USB mp3 audio player/recorder
Bluetooth receiver with independent volume control
PC/Mac audio device and aux power via USB A connection
Switchable +48V phantom power
Mono mic line inputs can be paired to stereo
Balanced XLR/Jack mono inputs
Stereo line input jacks and stereo minijack input
Supplied in a padded transit bag
USB type-C power supply
Weight0.875kg
Dimensions183 x 182 x 60mm
Inputs2 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm
Power supply5Vdc 1A min. (USB-C adaptor included)
Power consumption max.5W
Effects99 program DSP (2 parameter controls)
DSP sample rate48khz (24-bit)
Audio sourceBluetooth receiver, USB mp3 player/recorder
Bluetooth versionv5.1 (+BR+EDR+BLE)
USB versionv1.1 audio (mp3/wav/ape/flac)
EQ: low±15dB @ 80Hz
EQ: high±15dB @ 12kHz
Phantom power+48V switchable in pairs (XLR inputs only)
Frequency response20Hz - 22kHz (±1dB)
Input levelMic +10dBu max. / Line +22dBu max.
Input impedanceBalanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
THD +N<0.05% @ 1kHz
NoiseEIN -122dBu (22Hz - 22kHz)
CMRR>75dB (Mic 1kHz)
SensitivityXLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk : stereo>80dB (1kHz fader shutoff)
OutputsLeft + Right balanced XLR, Headphones 6.3mm jack
Max. output levelXLR +22dBu, TRS +20dBu
Trade Information
SKU170.862UK
Barcode EAN5015972232880
Tariff code8519890000
Country of originChina (CN)
Packaging typeGift Box
Package dims95 x 210 x 270mm
Package quantity1 unit
Nett weight0.8750kg
Gross weight1.1250kg
Carton dims280 x 445 x 505mm
Carton quantity10 units
Carton weight12.65kg
In the Box
CMA-series compact mixer

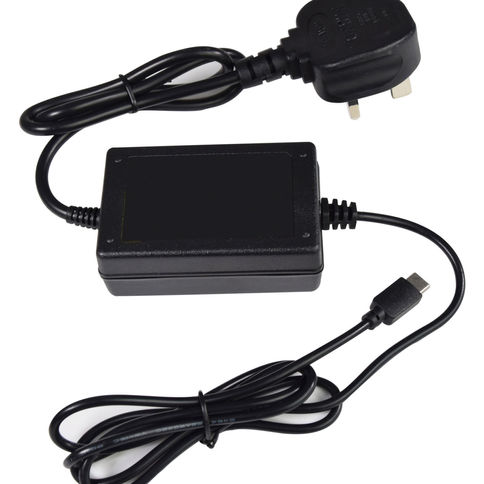

In-line UK mains to USB type-C power supply
Padded transit bag
Manuals
Instruction Manual
For 170.862UK in pdf format
Downloads
UK Declaration of conformity
For 170.862UK in pdf format
EU Declaration of conformity
For 170.862UK in pdf format
